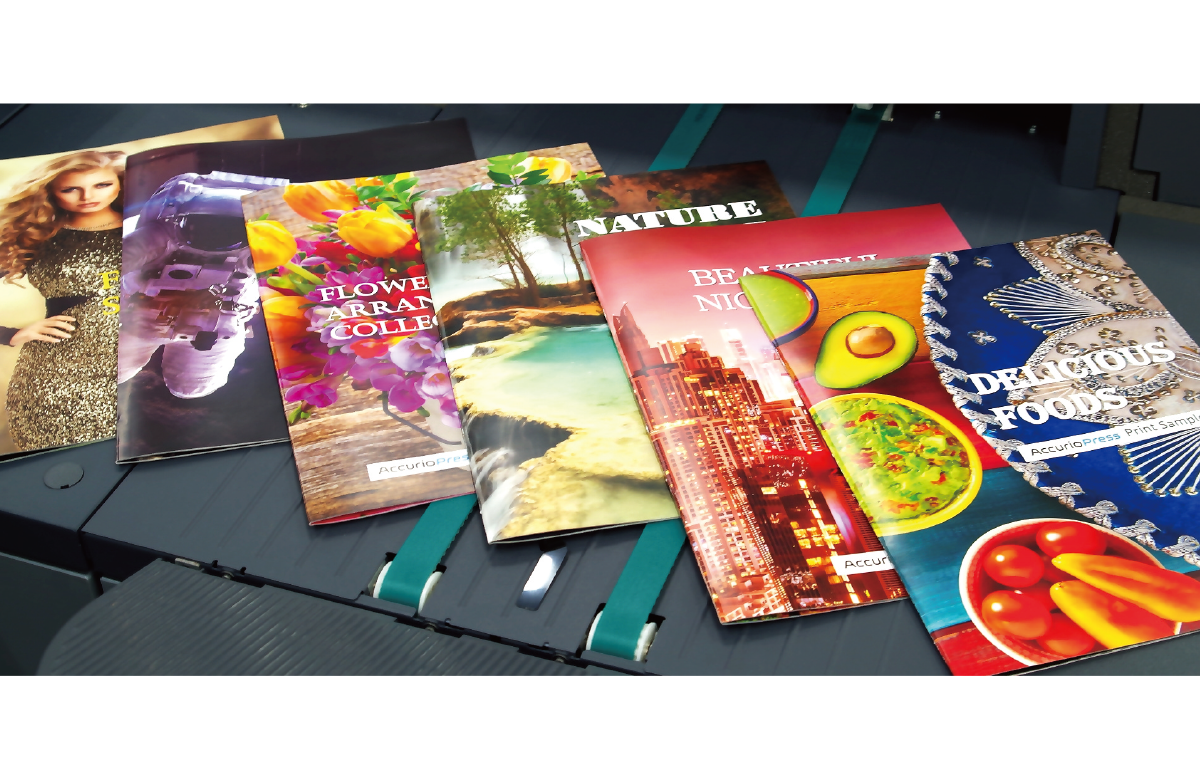

■Spine corner forming function

Mounting a Spine Corner Forming Unit [FD-504], it is possible to create spine corners, which provide a high quality finish by reducing swelling of saddle-stitched booklets. Flat-shaped bookbinding also leads to reduction of work space and workload in transportation.

■Three-edge trimming function

Use of Trimmer Unit [TU-503] makes it possible to trim both the top and bottom edges of the sheet. Output of full bleed designs is made possible in hybrid use with a fore-edge trimming function that is standard equipment.

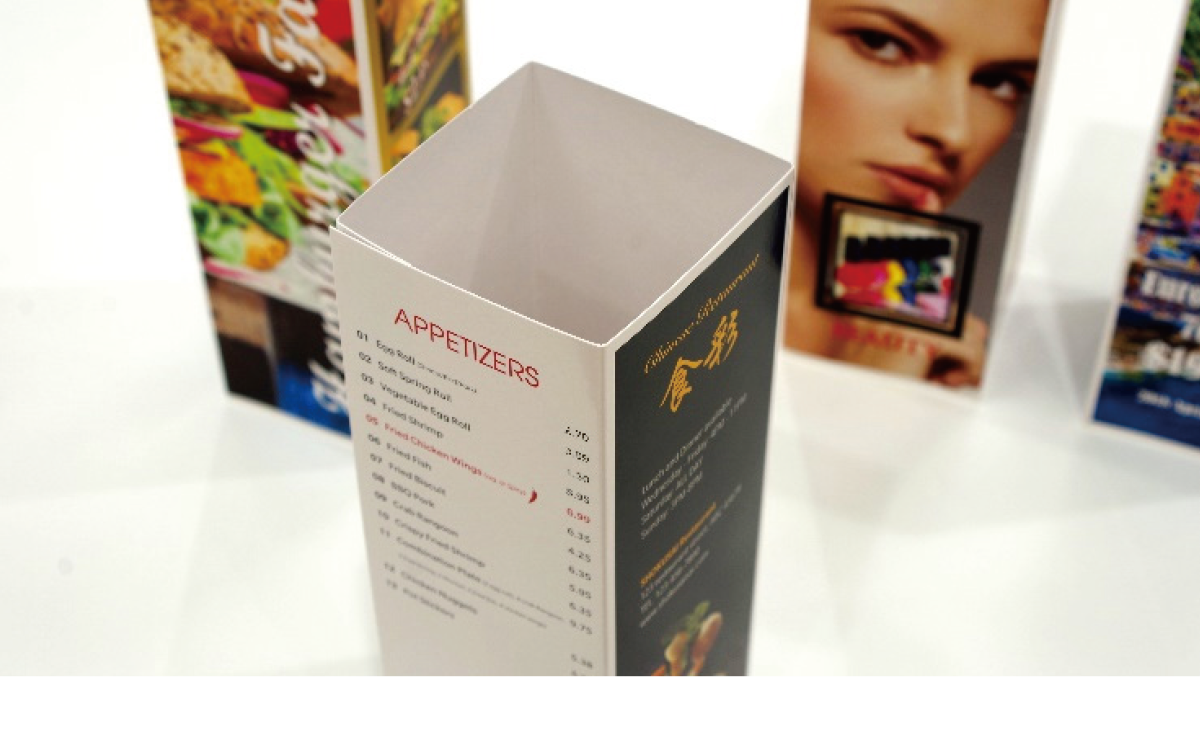

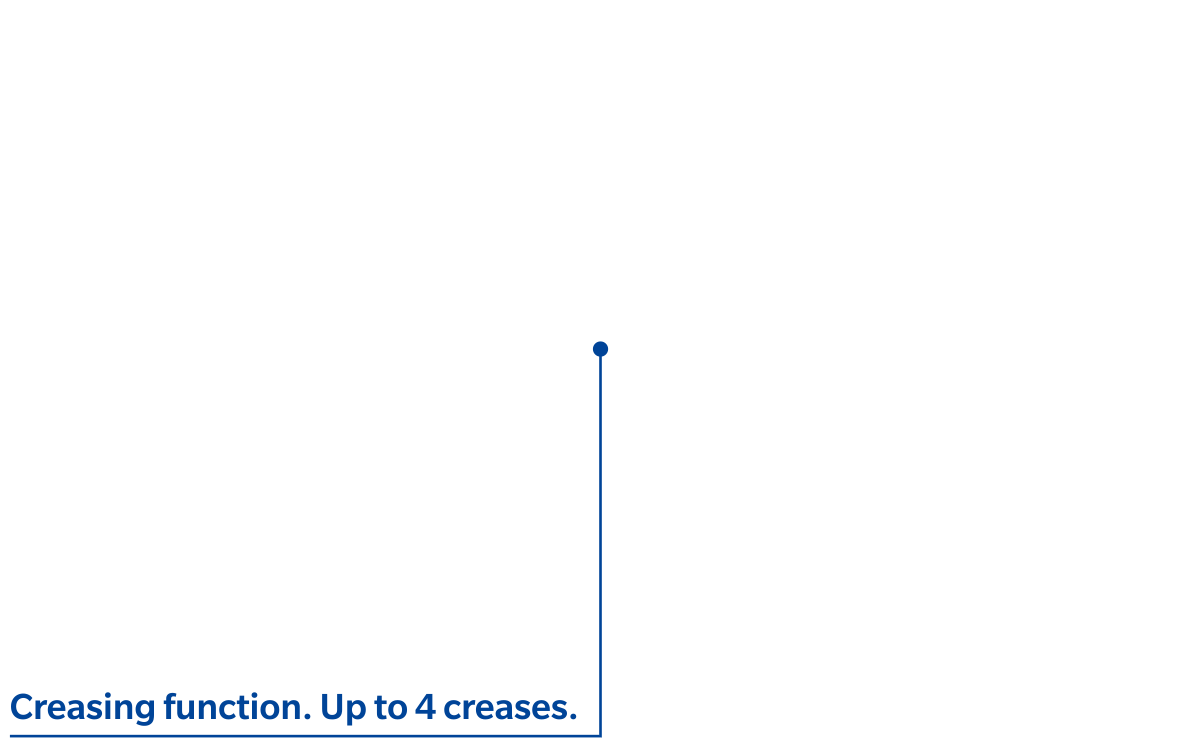

■Creasing function

Use of an optional Creaser Unit [CR-101] enables creasing of up to four lines, which provides a high quality finish with less toner cracking for stand menus and sales promotional tools printed on thick paper.

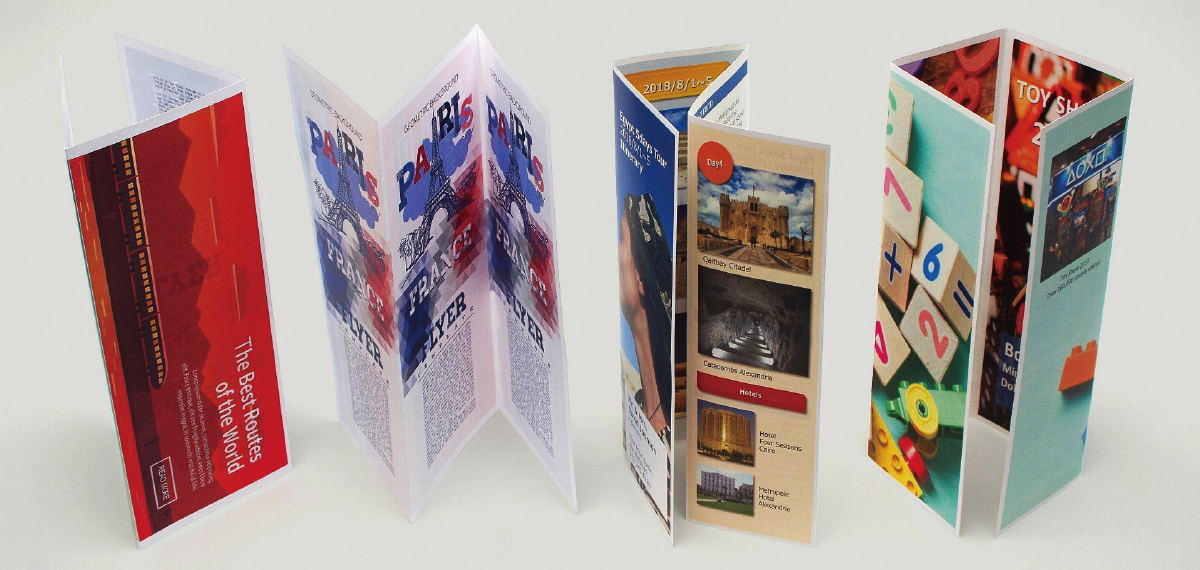

Folding unit FD-503 *Optional

Capable of double parallel and gate fold, as well as normal centre fold, tri-fold, Z fold. Furnished with features useful for producing DMs such as a wide variety of folding functions, and 2 & 3hole punching functions, as well as a sheet-inserter function capable of setting two different insert sheets.

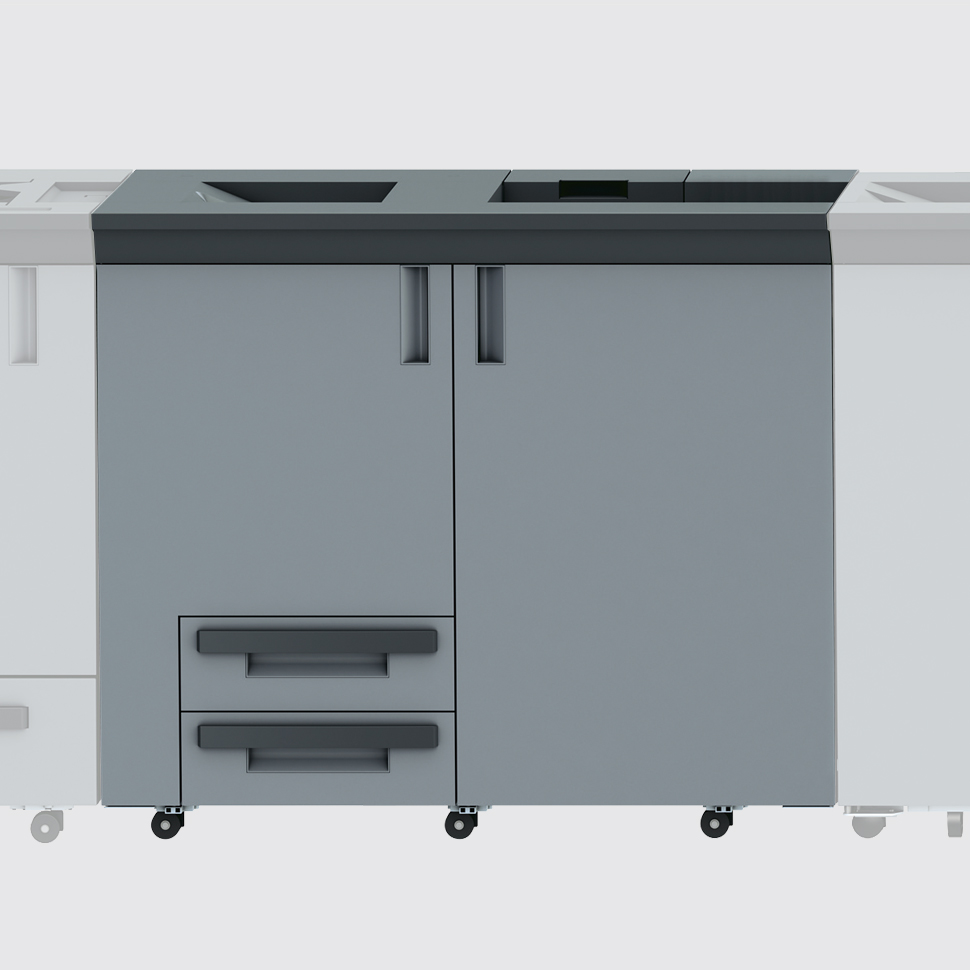

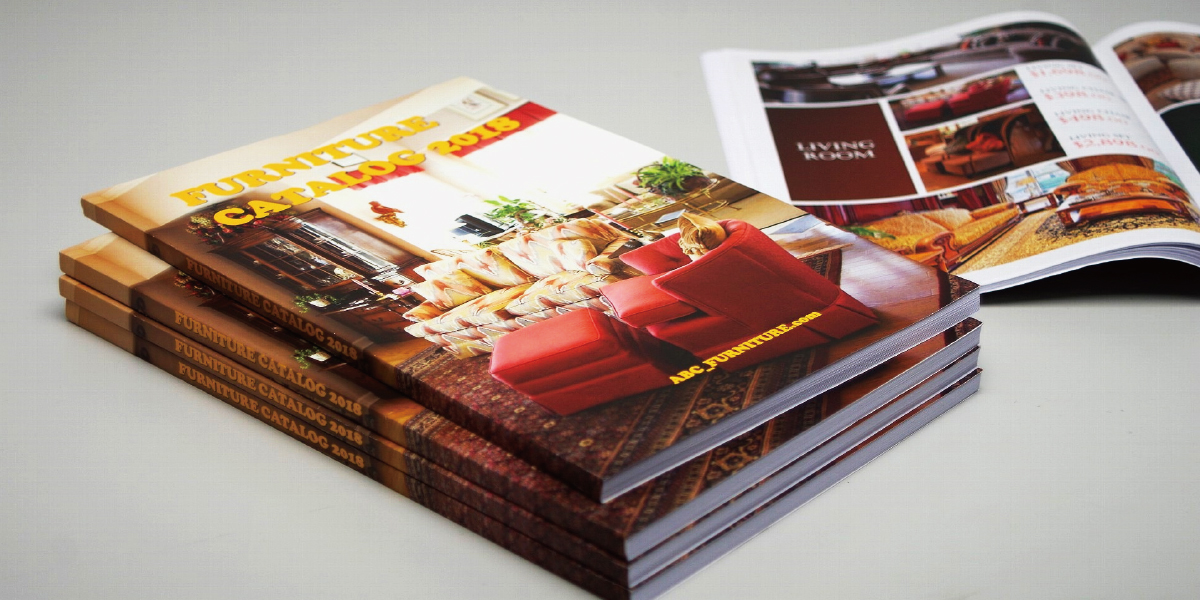

Perfect binder PB-503 *Optional

Perfectly binds up to 600 pages or up to 30mm thick. Cardstock up to 216 gsm can be used for the cover to realise high-quality bookbinding through advanced paper alignment. In addition, use of Multi-Folding Unit [FD-503] enables insertion of Z fold sheets while perfect binding is in process. This enables flexible bookbinding work owing to the ability to insert A3 size drawing sheets in booklets such as reports and manuals.

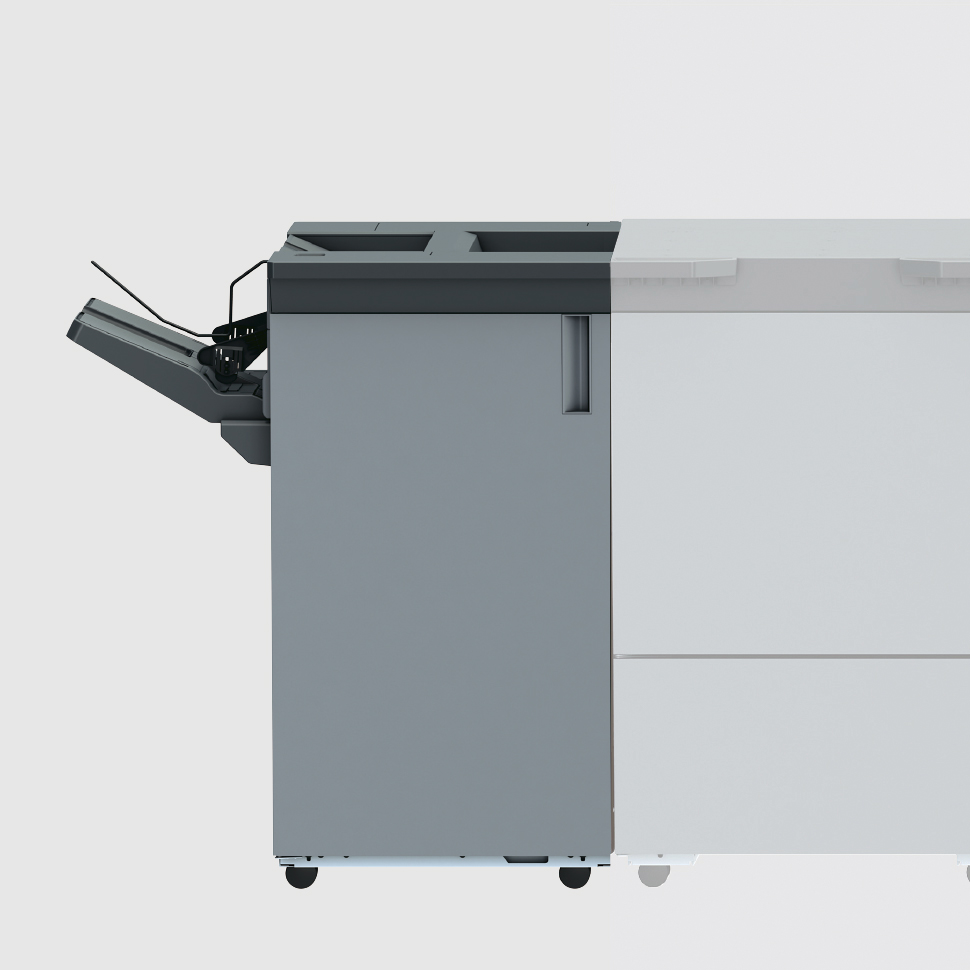

Finisher FS-532 *Optional

The stapling finisher with staple cutter is capable of stapling up to 100*¹ sheets. Three sub-options can be mounted to expand the system to enable saddle-stitching, post-insertion and punching, making it possible to perform multiple operations in a small space.

*1

1 Max. 50 sheets for A3

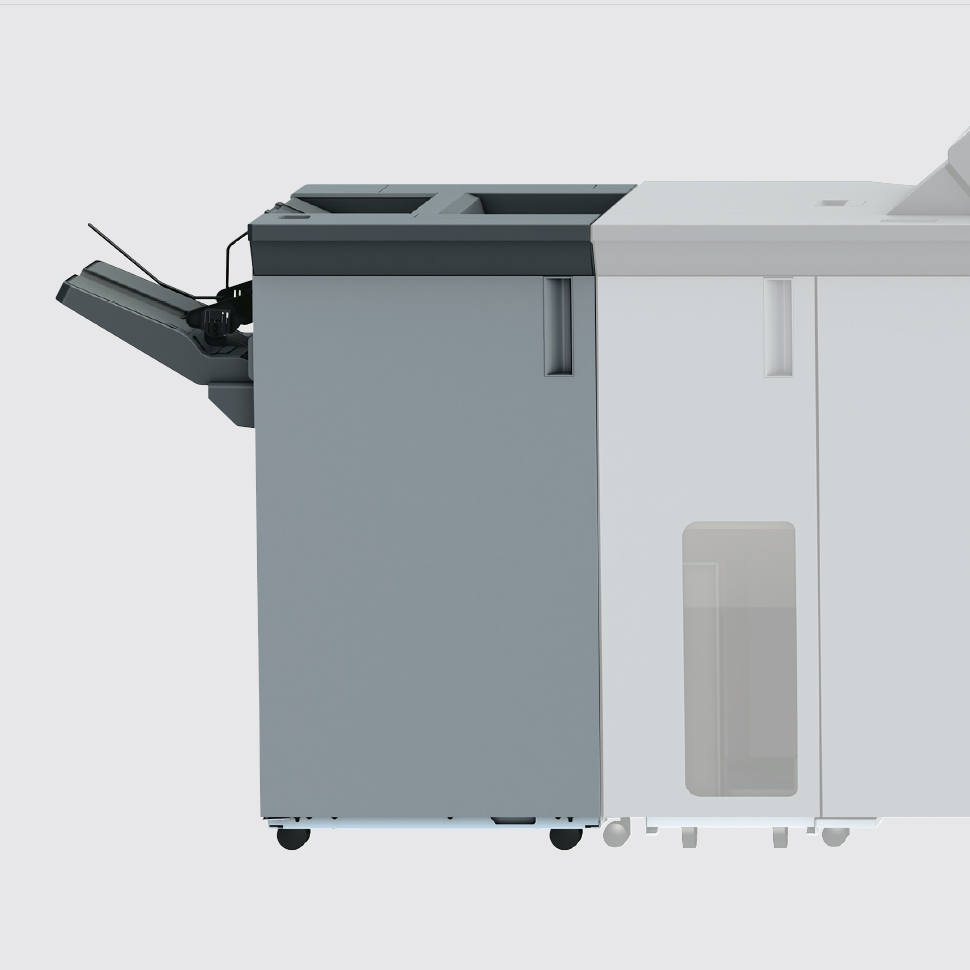

Saddle-stitcher SD-506 *Optional

Capable of saddle-stitch bookbinding of up to 200 pages and furnished as standard with an fore-edge trimming function, multi centre folding and multi tri-folding functions.

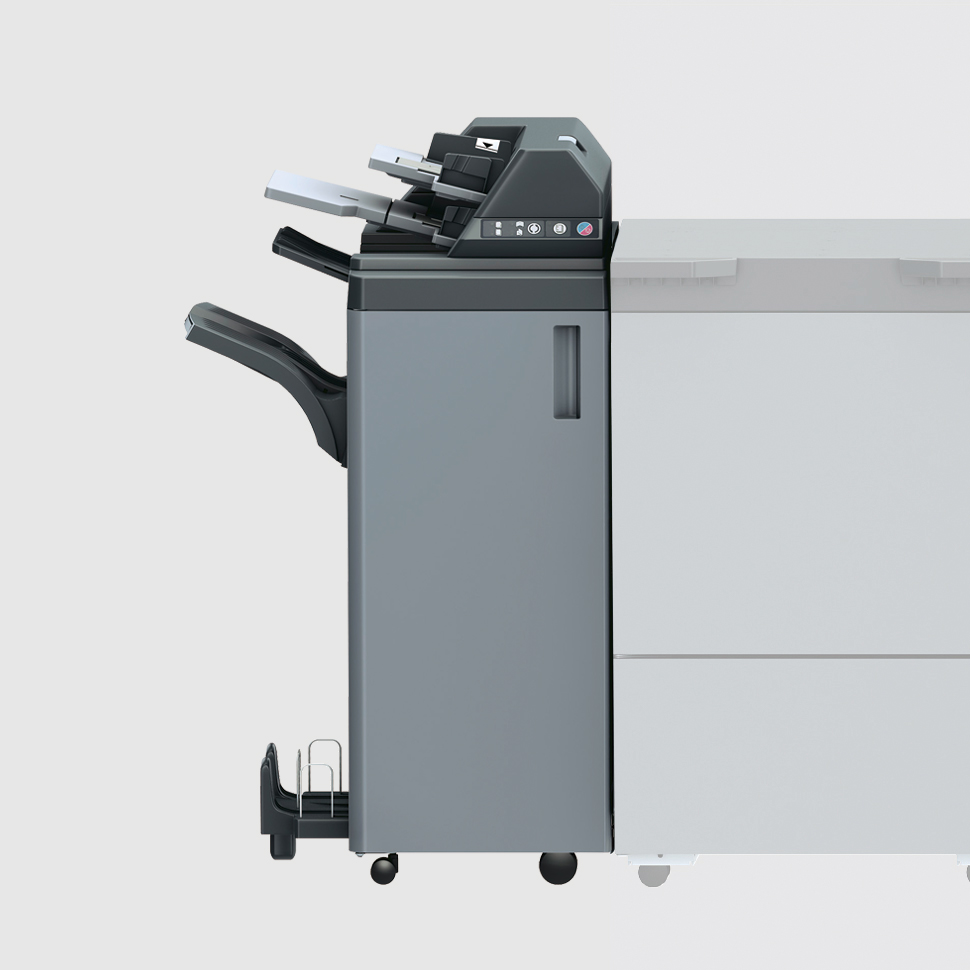

Finisher FS-531/FS-612 *Optional

The [FS-531] is capable of side stitching of a maximum of 50 sheets, in addition to a side-stitching function, [FS-612] is furnished with a saddle-stitching function and 2 types of folding functions for a maximum paper size of SRA3. If necessary, the system can be expanded to include functions for tasks such as punching and cover sheet insertion.

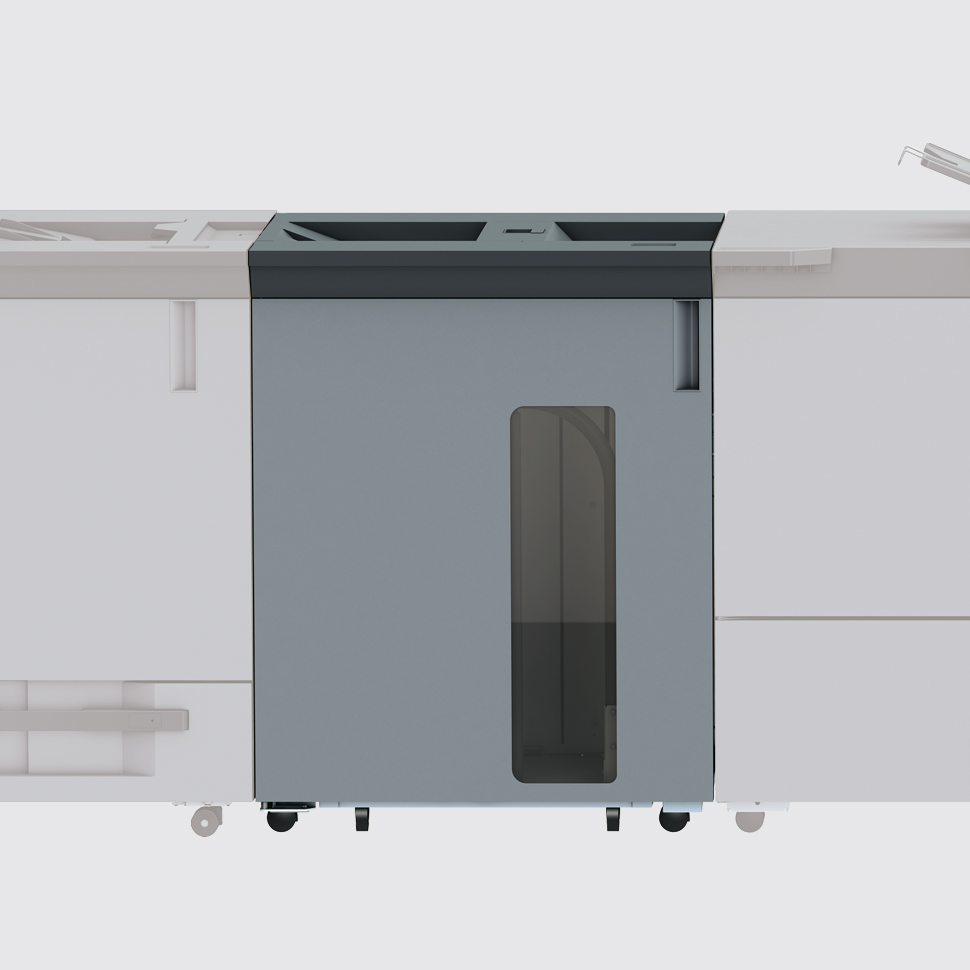

Large capacity stacker LS-506 *Optional

Up to two units can be installed side-by-side for a total ejection capacity of 10,000 sheets. Finished documents can be taken out with the cart as they are for ease of transport to the next process. A sample ejection function allows quality checks to be performed during large volume printing.

Large capacity output tray OT-510 *Optional

Output tray to accept maximum 4,200 sheets stack. Abundant paper stack capacity helps improve the efficiency in the off-line workflow where post-processing is a main work.

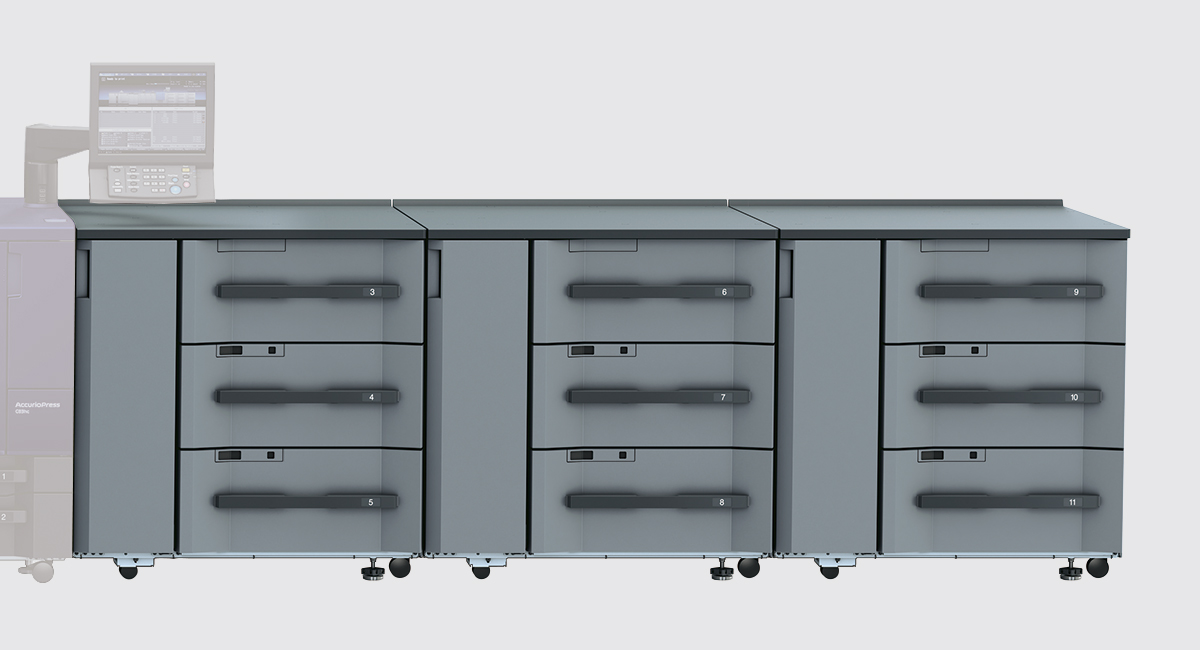

High capacity paper handling *Optional

Maximum paper feeding capacity is increased to 15,390 sheets by connectable [PF-707m]*1 that is more than two times of C71hc (7,500 sheets). These improvements responds for demands of high volume jobs and short turnaround.

*1

Optional * All capacities are calculated based on 80gsm

Maximum paper feeding capacity

	Main Unit	PF-707m	PF-707m	PF-707m
Upper tray	500 sheets	1,390 sheets	1,390 sheets	1,390 sheets
Middle tray	—	1,390 sheets	1,390 sheets	1,390 sheets
Bottom tray	1,000 sheets	1,850 sheets	1,850 sheets	1,850 sheets
Total	1,500 sheets	4,630 sheets	4,630 sheets	4,630 sheets
	Max. paper feed capacity: 15,390 sheets
